348 Meacham Avenue, Elmont, NY - 2 story concrete framing warehouse with reinforced CMU perimeter wall (08/20-02/21)

Developed full ETABS model for 2-story concrete framed warehouse with combined reinforced concrete and CMU shear walls. Designed shear wall elevator core, reinforced CMU perimeter wall, and spread footings using ETABS and excel sheets. Reviewed analysis and design of mat foundation for shear wall core in SAFE done by others.

Position: Structural Design Engineer

Design Duration: August 2020- January 2021

Consultation Fee: $50,000.00

Structural Design Company: ZI Engineering PC

Client: Darcon Construction

Architect: Wellkraft Architecture

Concept Architectural 3D View


ETABS 3D View

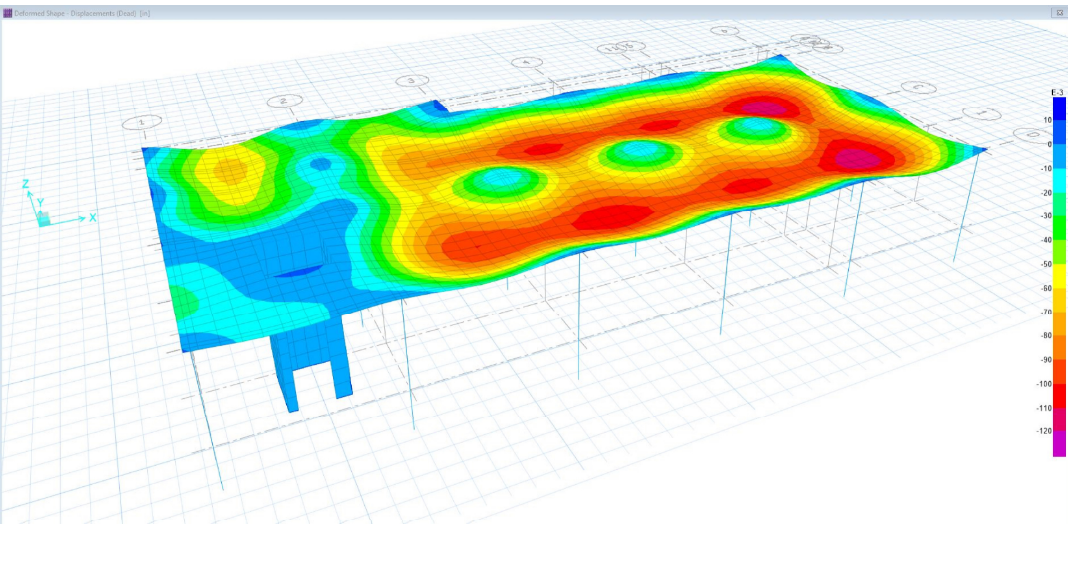

SAFE Flatslab concrete analysis

SAFE Flatslab concrete analysis
